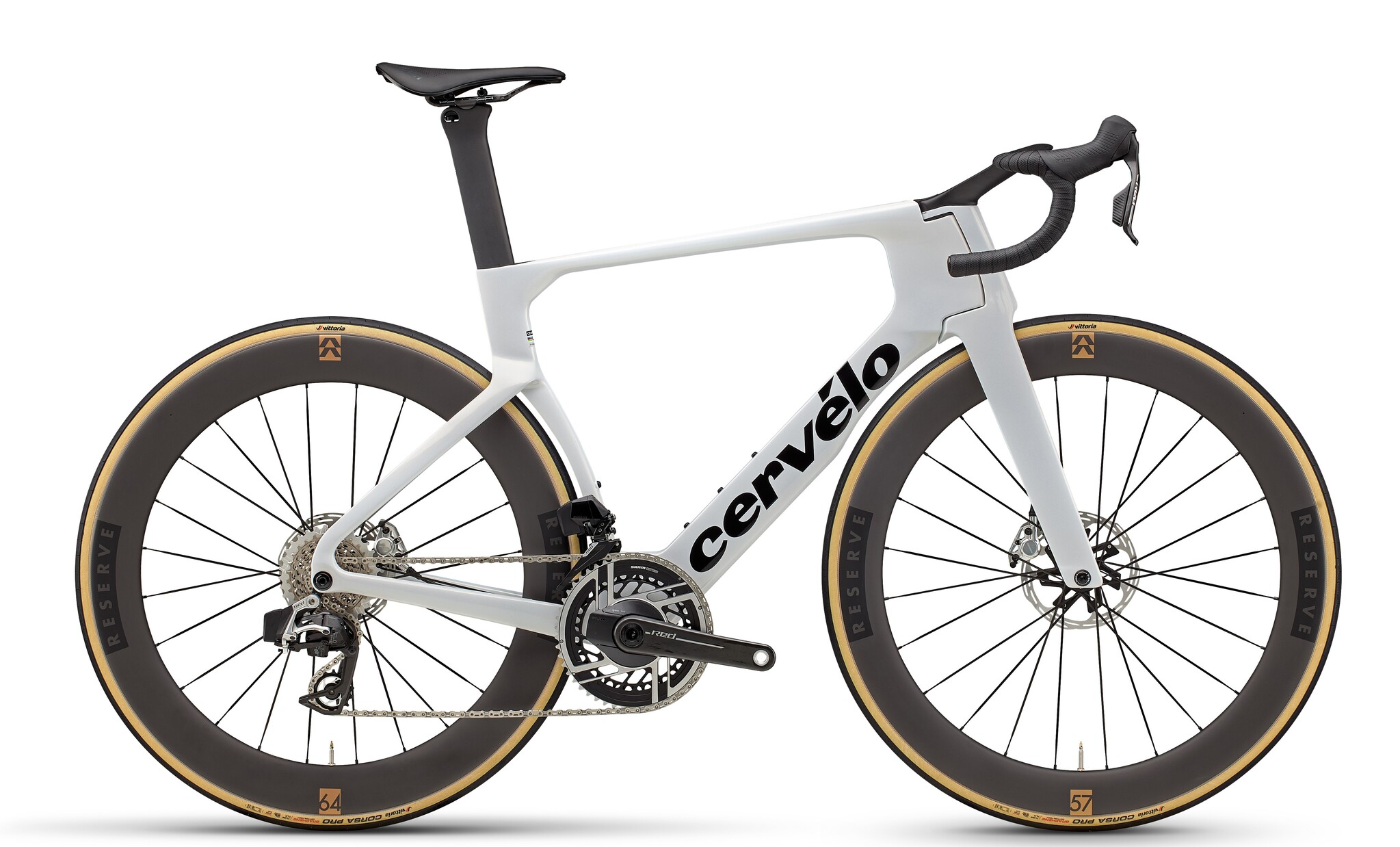

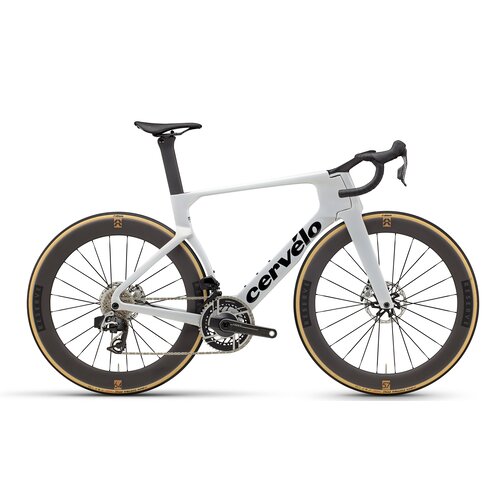

The new S5 is over 6 Watts faster than its predecessor, 124 grams lighter, and retains the handling, poise, and stability that riders everywhere love. The biggest changes are at the front of the bike, where the most significant aerodynamic performance comes from. The fork legs and head tube got quite a bit deeper, and the all-new, one-piece handlebar/stem builds on the original V-stem concept—and gets even faster.
Cervélo and Reserve co-developed the new Reserve 57|64 Turbulent Aero wheels specifically for use in the S5 frame, completing the aerodynamic system.
The new S5 is 6.3 Watts faster than its predecessor. These gains are realized primarily at the front end of the bike, but the integration of the asymmetric profiles of the seat tube and rear wheel are a significant source as well. Cervélo has long been the aerodynamic leader in the peloton, and they’re confident that the new S5 is at least 5 Watts faster than the bikes of their competitors.
The new S5’s one-piece bar and stem is a big part of the bike’s increase in aerodynamic performance, but aerodynamic improvements are limited if the bike doesn’t fit you perfectly. Cervélo made nine different size combinations, and when you buy an S5, your Authorized Cervélo Retailer will help you get the right bar/stem combo, for no additional cost.
SPECIFICATIONS
BIKE FRAME – Cervélo All-Carbon
FORK – Cervélo All-Carbon, Bayonet S5 Fork
FRONT WHEEL – Reserve 57TA, DT Swiss 180, 12x100mm, 24H, centerlock, tubeless compatible
REAR WHEEL – Reserve 64TA, DT Swiss 180, 12x142mm, XDR freehub 24H, centerlock, tubeless compatible
FRONT TIRE – Vittoria Corsa Pro TLR G2.0 700x29c
REAR TIRE – Vittoria Corsa Pro TLR G2.0 700x29c
CRANKSET – SRAM Red AXS E1, DUB, w/ power meter
CHAINRING – 50/37T
BOTTOM BRACKET – SRAM DUB Ceramic, BBright
FRONT DERAILLEUR – SRAM Red AXS E1, Direct Mount
REAR DERAILLEUR – SRAM Red AXS E1, 12-speed
SHIFT LEVER – SRAM Red AXS E1
CASSETTE – SRAM Red E1, 10-33T, 12-Speed
CHAIN – SRAM Red E1
FRONT BRAKE – SRAM Red hydraulic disc, SRAM Paceline X Centerlock
REAR BRAKE – SRAM Red hydraulic disc, SRAM Paceline X Centerlock
HANDLEBAR/STEM COMBO – Cervélo HB19 Carbon
SEAT POST – Cervélo SP34 Carbon
SADDLE – Selle Italia NOVUS BOOST EVO SuperFlow Carbon
