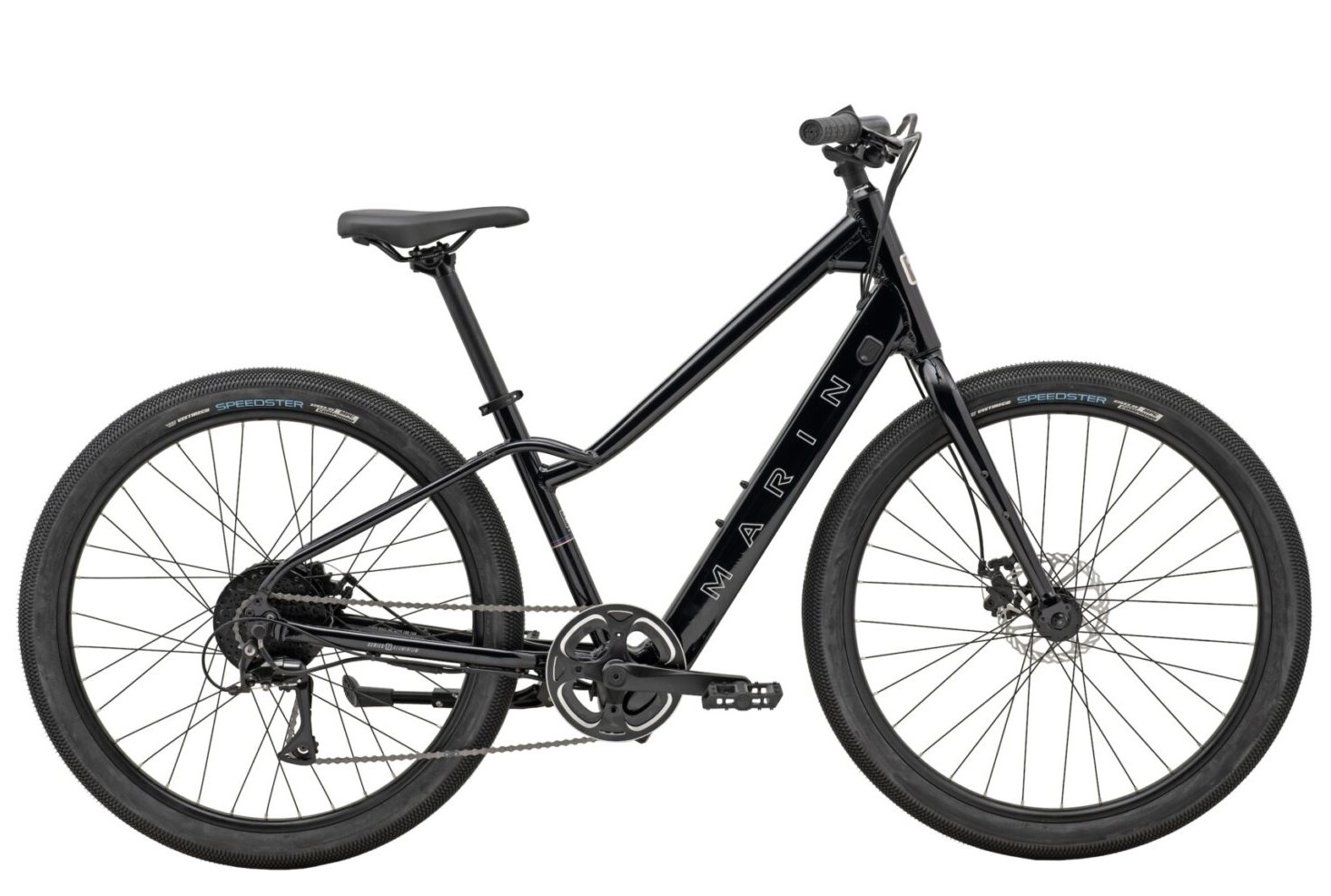

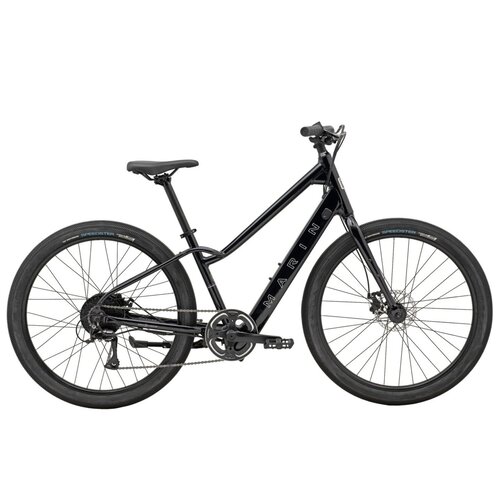

Marin Stinson E | Electric Bike

The STINSON E ST gives you the power to move through the urban landscape cleanly and efficiently is now as simple as pedaling.

SPECIFICATIONS
E-BIKE
UI/REMOTE – Handlebar Mount LCD Switch & Display
BATTERY – Bafang 340Wh, 36V, In-tube
MOTOR – Bafang 250 Watt Hub Motor, 40Nm, 36H

BIKE
FRAME – Series 1 Comfort, Ebike Specific, 6061 Aluminum, 27.5” Wheels, Disc Specific, Comfort Control Geometry, Kickstand Mount, Fender and Rack Mounts
FORK – CrMo Steel, Straight Blade, Disc Specific, Fender and Rack Eyelets
FRONT WHEEL – Forged Aluminum Alloy 32H hub w/ Marin Aluminum Double Wall, Disc Specific 27.5 rim
REAR WHEEL – Bafang 250 Watt Hub Motor, 36H hub w/ Marin Aluminum Double Wall, Disc Specific 27.5 rim
FRONT TIRE – Vee Tire Co. Speedster, 27.5”x2.35”, Puncture Protection
REAR TIRE – Vee Tire Co. Speedster, 27.5”x2.35”, Puncture Protection
CHAINRING – Alloy
CHAINRING – 38T Steel w/ Ring Guard
BOTTOM BRACKET – Integrated Torque Sensing, Sealed Cartridge Bearings, Square Taper
REAR DERAILLEUR – Shimano Acera, 8-Speed
SHIFTER – Shimano Altus 8-Speed RapidFire
CASSETTE – SunRace 8-Speed, 11-34T
CHAIN – KMC Z8
FRONT BRAKE – Tektro MDM280 Mechanical Disc, 160mm disc
REAR BRAKE – Tektro MDM280 Mechanical Disc, 160mm disc
HANDLEBAR – Marin Alloy, 25mm Rise, 18˚ Backsweep
STEM – Marin Alloy
SEATPOST – Marin Alloy, 30.9mm
SADDLE – Marin Comfort
