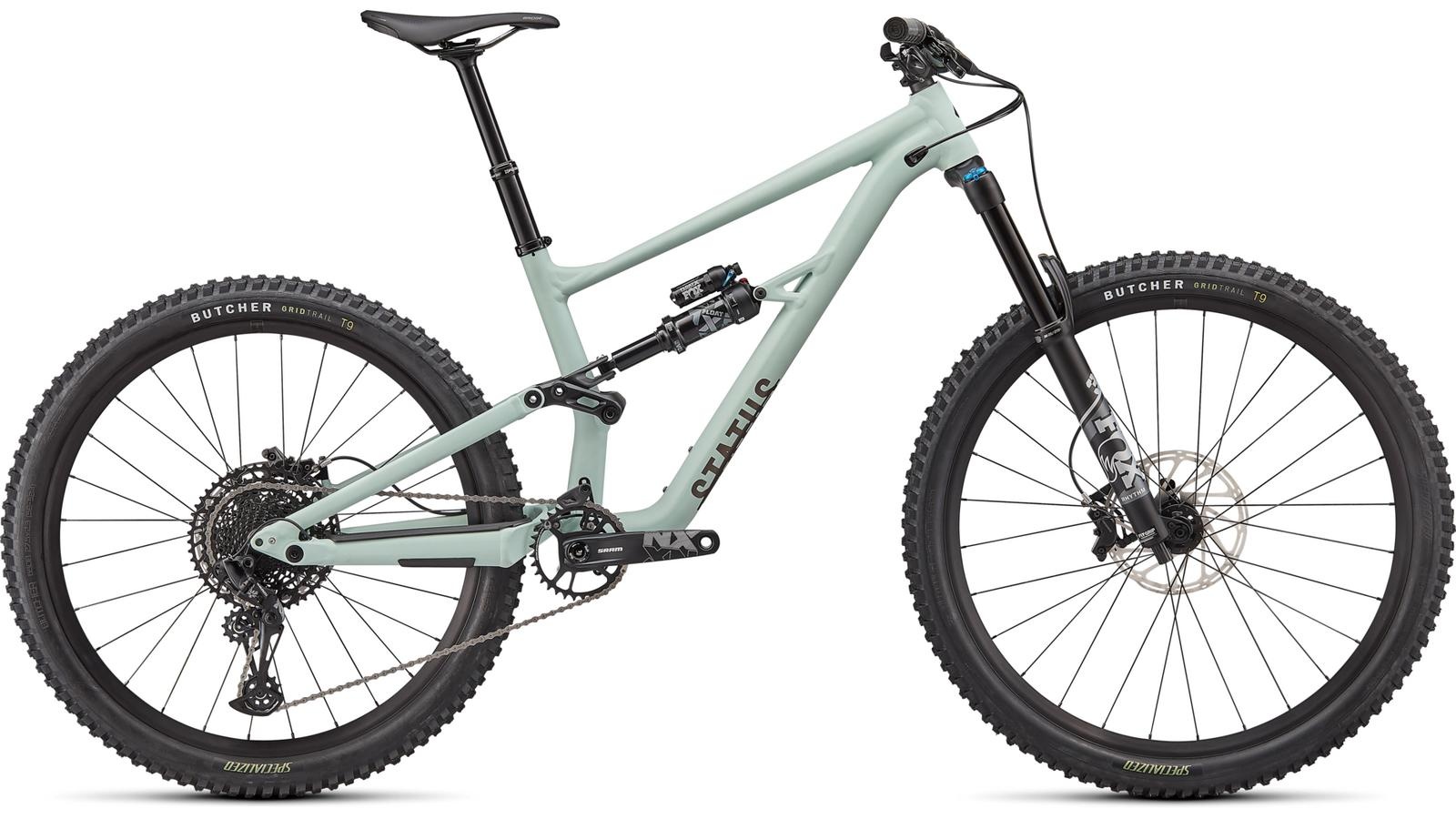

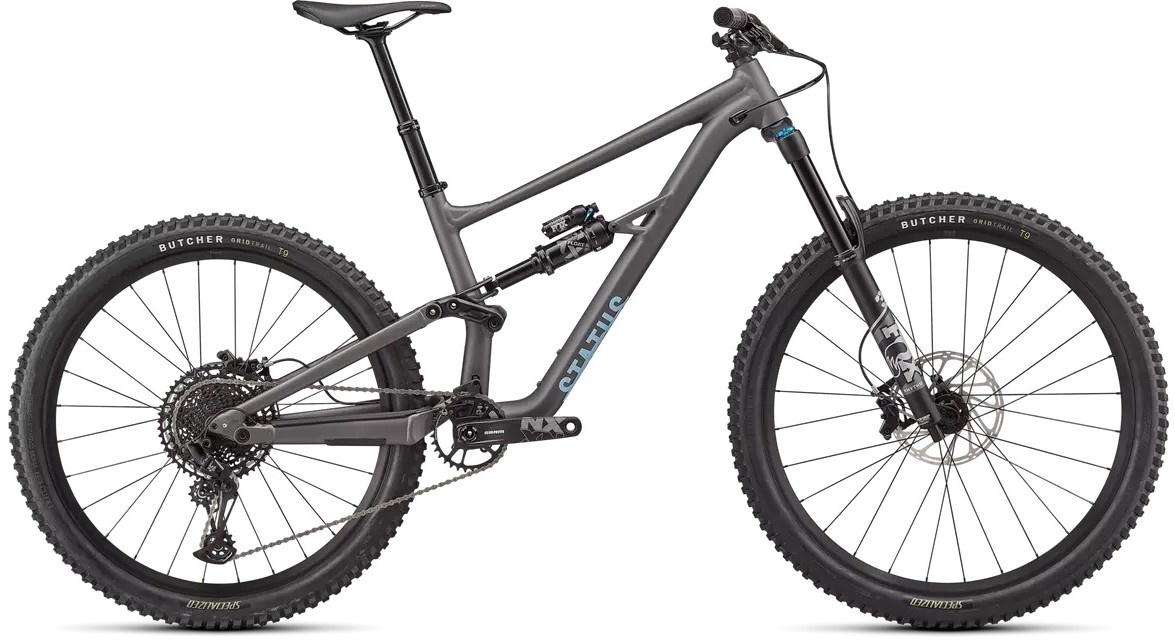

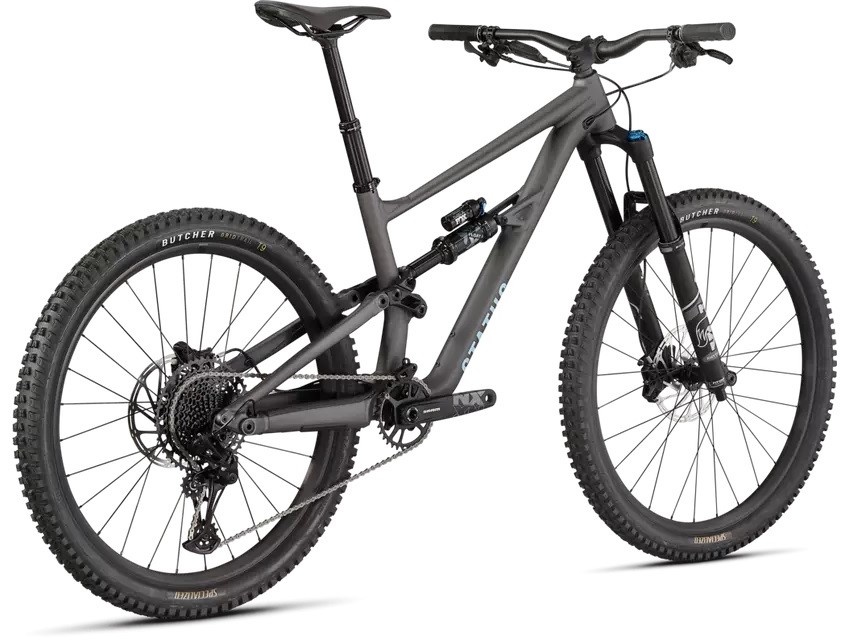

Specialized Status 160 | Mountain Bike
The Specialized Status 160 may be an all-new bike, but it’s really an all-new way of thinking about how to have the most fun possible on two wheels—even if that means they’re different sizes. Read more
The Status 160 may be an all-new bike, but it’s really an all-new way of thinking about how to have the most fun possible on two wheels—even if that means they’re different sizes.
- Focused on fun and featuring our Mixed-Wheel Trail Geometry, the Status frameset is a fewer frills, all thrills FSR delivery system crafted from our hard-charging—and hard-wearing—M5 alloy and is designed not only to take a hit, but keep asking for more.
- Fox’s FLOAT 36 Rhythm calls their venerable Grip damper into service in the name of adventurous riders everywhere, offering impressively controlled travel with plenty of trail-feel that puts confidence on speed dial. The two-position Sweep adjustment ensures the FLOAT 36 Rhythm is right at home dealing out its 160-millimeters of travel in just about any environment while 36-millimeter stanchions promise plenty of stiffness for precise handling at the limit.
- Quality suspension unlocks some serious free speed, so to slow it all down, we tasked SRAM’s proven Code R brakes with stopping duties. Forged four-piston calipers offer serious stopping power, while 200-millimeter rotors on both ends of the bike promise plenty of fade-free bite when it matters.
SPECIFICATIONS
FRAME - M5 alloy chassis and rear-end, Mixed wheel Trail Geometry, threaded BB,12x148mm dropouts, sealed cartridge bearing pivots, replaceable derailleur hanger, 160mm of travel
REAR SHOCK - FOX FLOAT X Performance, Rx Trail Tune, EVOL Air sleeve, 2-position lever w/ LSR adjustment, 230x60mm
FORK – FOX FLOAT 36 Rhythm, GRIP damper, two position Sweep adjustment, 15x110mm QR axle, 44mm offset, 160mm of travel
FRONT WHEEL – Alloy, sealed cartridge bearings, 15x110mm thru-axle, 28h hub w/ Specialized 29, hookless alloy, 30mm inner width, tubeless ready
REAR WHEEL – Alloy, sealed cartridge bearings, 15x110mm thru-axle, 32h hub w/ Specialized 27.5, hookless alloy, 30mm inner width, tubeless ready
FRONT TIRE – Butcher, GRID TRAIL casing, GRIPTON® T9 compound, 2Bliss Ready, 29x2.3"
REAR TIRE – Butcher, GRID TRAIL casing, GRIPTON® compound, 27.5x2.3"
CRANKSET – SRAM NX Eagle, DUB, 170mm
CHAINRING – 30T, steel
BOTTOM BRACKET – SRAM DUB, BSA 73mm, Threaded
REAR DERAILLEUR – SRAM NX Eagle, 12-speed
SHIFT LEVER – SRAM NX Eagle, trigger
CASSETTE – SRAM NX Eagle, 12-speed, 11-50T
FRONT BRAKE – SRAM Code R, 4-piston caliper, hydraulic disc, 220mm
REAR BRAKE – SRAM Code R, 4-piston caliper, hydraulic disc, 200mm
GUIDON – Specialized, 6061 alloy, 6-degree upsweep, 8-degree backsweep, 30mm rise, 780mm width
POTENCE – Alloy Trail Stem, 35mm bar bore
SEAT POST – X-Fusion Manic, infinite adjustable, two-bolt head, bottom mount cable routing, remote SLR LE lever, 34.9mm, S2: 125mm, S3/S4: 150mm, S5: 170mm
SADDLE – Body Geometry Bridge Comp, hollow Cr-Mo rails, 143mm
