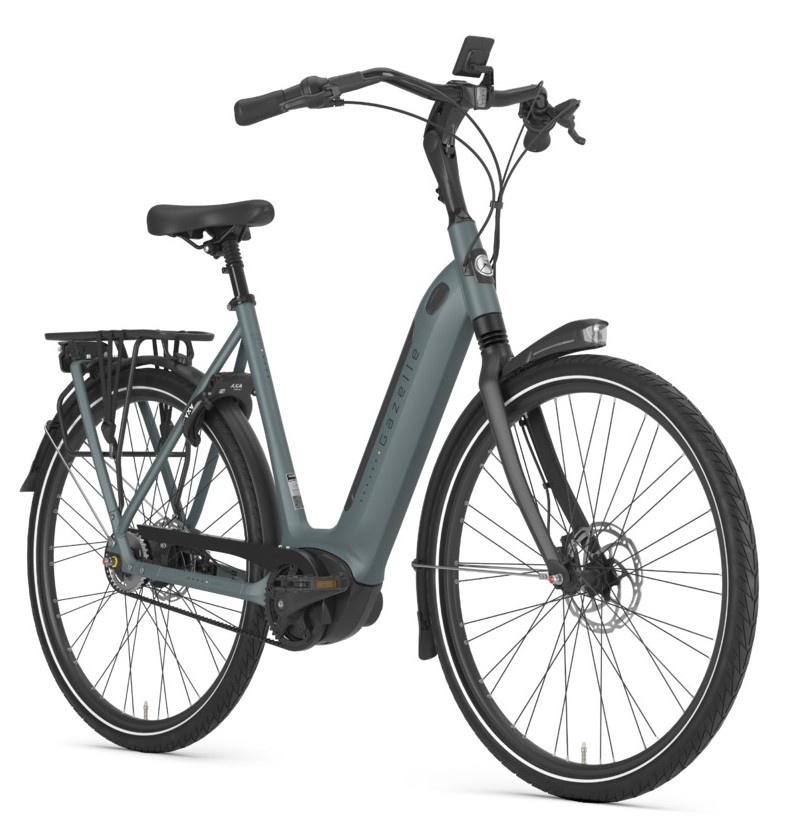

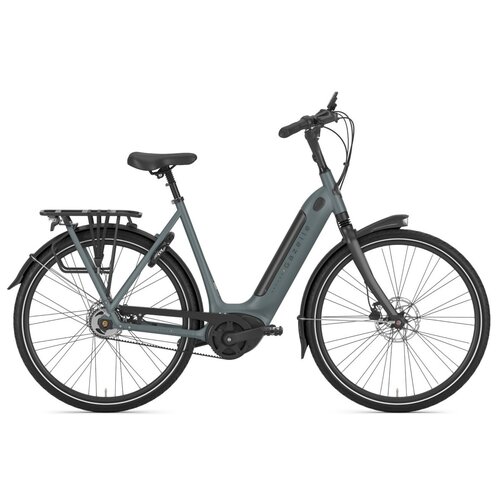

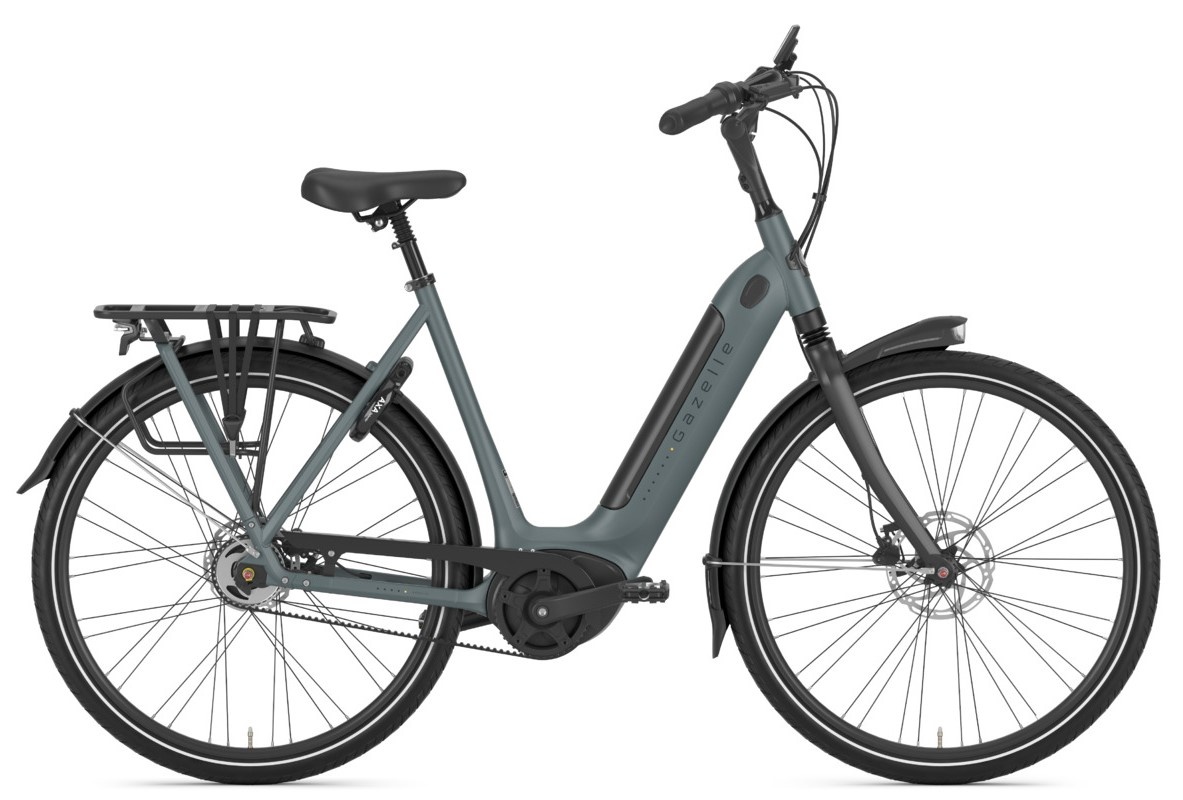

Touring is a pleasure with the Gazelle Arroyo C5 HMB Elite. You can get on and off easily, sit upright comfortably, and have a good view of your surroundings. Thanks to the powerful motor, you can stop and go wherever you want.
Bosch's lithium-ion batteries are among the most advanced on the market. Their intelligent battery management system guarantees a long life, while the efficient energy control optimizes your bike's range. With the integrated 500 Wh battery, you'll always have enough range. The battery is secured in the frame with a lock. You can easily remove it from the bike with a key that also works on the café lock. Convenient, as you can charge the battery either on or off the bike.
The Bosch Performance Line gives you everything your cyclist's heart desires. Smooth and powerful assistance that will never let you down. With 75 Nm torque you can handle any terrain. Highly recommended for the demanding cyclist.
SPECIFICATIONS
E-BIKE
UI/REMOTE – Bosch Intuvia 100
BATTERY – Bosch Intube, 500Wh
CHARGER – 4 Ah
MOTOR – Bosch Smart System Performance Line (75Nm)
BIKE
FRAME – Stable, lightweight hydro-formed aluminium frame with 68.5° headset angle and 69.5° seat tube angle for relaxed and comfortable riding. This is a low-step and spacious frame, single tube and integrated cables
FORK – Aluminium, telescopic sprung
FRONT WHEEL – Shimano hub w/ Rodi Viper, Double-walled aluminium, 700c rim
REAR WHEEL – Shimano Nexus 5 hub w/ Rodi Viper, Double-walled aluminium, 700c rim
FRONT TIRE – Schwalbe Energizer Active Plus 700x47c
REAR TIRE – Schwalbe Energizer Active Plus 700x47c
CHAINRING – 46T
REAR DERAILLEUR – Shimano Nexus 5-speed Internal Gear Hub
COG – N/A
CHAIN – Gates Belt
FRONT BRAKE – Tektro HD-T280, 2 piston, 180mm disc
REAR BRAKE – Tektro HD-T280, 2 piston, 180mm disc
HANDLEBAR – Gazelle AeroLeder, luxury leather handlebar grips for a sophisticated feel and extra comfort
STEM – Ajustable
SEATPOST – Seatpost suspension
SADDLE – Selle Royal Essenza Plus
The speed limit at which the motor will stop supporting may vary significantly by region and is based on local requirements. It may also affect range: a higher speed limit may result in less range.
